BEKOKAT® | Hydrocarbon Removal Systems

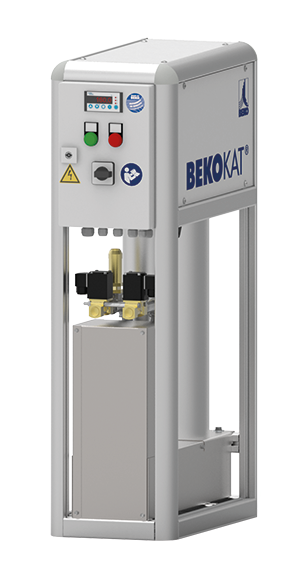

iCC 010
Flow Rate
| 10 scfm |
Standard Operating Pressure
| 160 psig |
Standard Operating Voltage
| 230 Vac | 1 Ph | 60 Hz |
Power Consumption
| Installed: 0.58 kW |
| Average: 0.20 kW |
ISO 8573 Air Quality Class | Class 1 TÜV Certified
| Class 1 | Yes |
Available Options
| Cover3More extended warranty |
iCC 035 - iCC 070
Flow Rate
| 35 - 70 scfm |
Standard Operating Pressure
| 232 psig |
Standard Operating Voltage
| 230 Vac | 1 Ph | 60 Hz |
Power Consumption
| Installed: 1.0 - 1.64 kW |
| Average: 0.52-0.86 kW |
ISO 8573 Air Quality Class | Class 1 TÜV Certified
| Class 1 | Yes |
Available Options
| Cover3More extended warranty |
iCC 105 - iCC 425
Flow Rate
| 105 - 425 scfm |
Standard Operating Pressure
| 232 psig |
Standard Operating Voltage
| 460 Vac | 3 Ph | 60 Hz |
Power Consumption
| Installed: 2.64 - 8.74 kW |
| Average: 1.33 - 3.26 kW |
ISO 8573 Air Quality Class | Class 1 TÜV Certified
| Class 1 | Yes |
Available Options
| Cover3More extended warranty |
iCC 705
Flow Rates
| 705 scfm |
Standard Operating Pressure
| 160 psig |
Standard Operating Voltage
| 460 Vac | 3 Ph | 60 Hz |
Power Consumption
| Installed: 13.80 kW |
| Average: 3.75 kW |
ISO 8573 Air Quality Class | Class 1 TÜV Certified
| Class 1 | Yes |
Available Options
| Cover3More extended warranty |
BEKOKAT® Function Video
Using the BEKOKAT® hydrocarbon removal system from BEKO TECHNOLOGIES makes it possible to achieve a constant oil-free compressed air stream with a maximum residual oil content of an immeasurable 0.001 mg/m³ in the compressed air. In addition, the functional principle of the BEKOKAT® also produces germ-free air, requires minimal maintenance, and any condensate generated does not require special handing. This is a quality level of compressed air that can be used in a wide variety of applications from the most stringent and demanding to simply converting an oil-flooded compressor to oil-free with a true plug-and-play device.
Find even more videos on our YouTube channel.
BEKOKAT® Features and Benefits
Oil-free Compressed Air
- Continuously produced from any compressor type down to 0.003 mg/m3
Germ-free Compressed Air
- Generates amicrobic and spore-free air in accordance with ISO 8573-7
Independent of Conditions
- Stable residual oil content and independent from any ambient hydrocarbon content
Partial Load Operation
- Maximum process reliability regardless of production fluctuations
Responsive Controls
- Ensures machine safety and operational accuracy
Self Recovery
- Self Recovery even after increased oil carry over (e.g. oil filter failure)
