METPOINT^® | Sensor Technology

Compare

SD Series Dew Point Sensors

Measuring Principle

Capacitive polymer sensor

Measured Variables

Dew point

Intended Measurement Medium

Compressed air or gases

Measurement Range

-76 to +86 °F td
-22 to +158 °F measured gas temp.
0 to 100% rH

Measuring Accuracy

± 3.5 °F at -40 °F PDP
± 0.9 °F at +15 to +86 °F

Max. Operating Pressure

725 psig

Operating Temperature

-22 to +158 °F

Storage Temperature

-40 to 185 °F

Connection Size | Type

¼" Quick Disconnect Adapter

Analog Output

4...20 mA

Digital Output

Yes

Protection Class

IP65

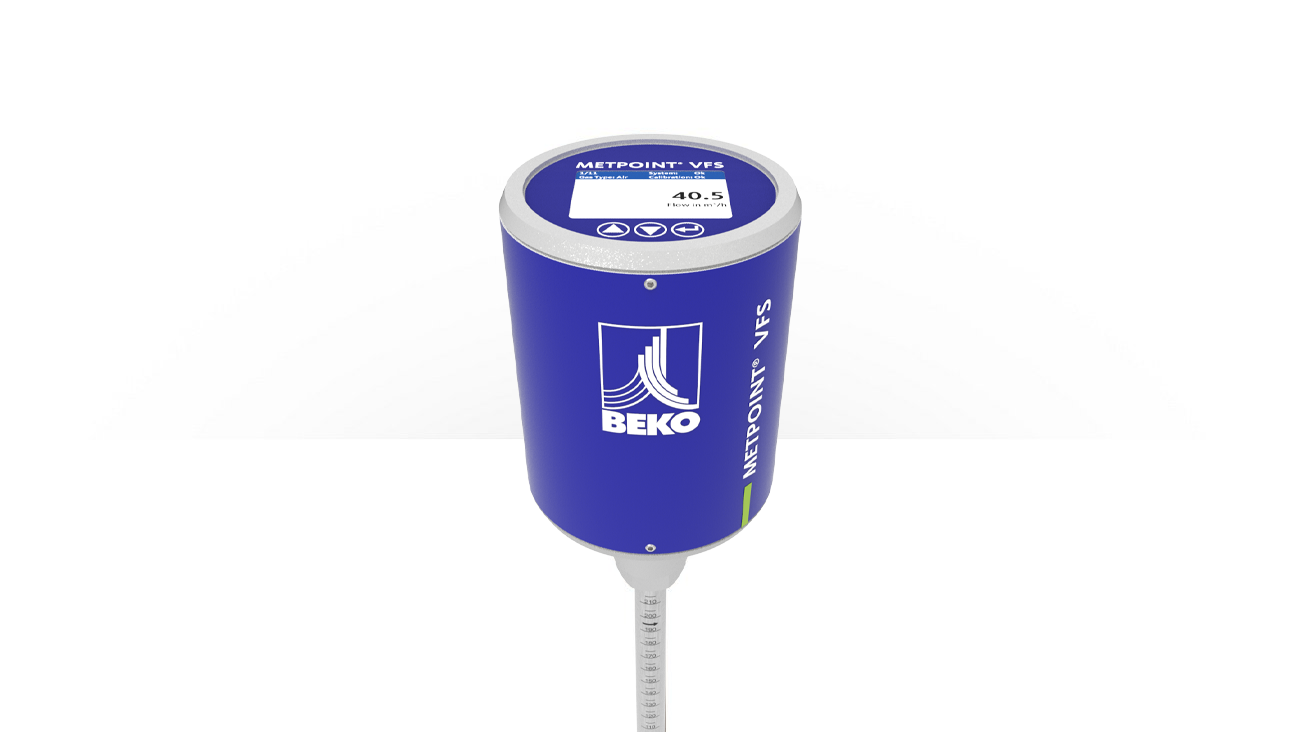

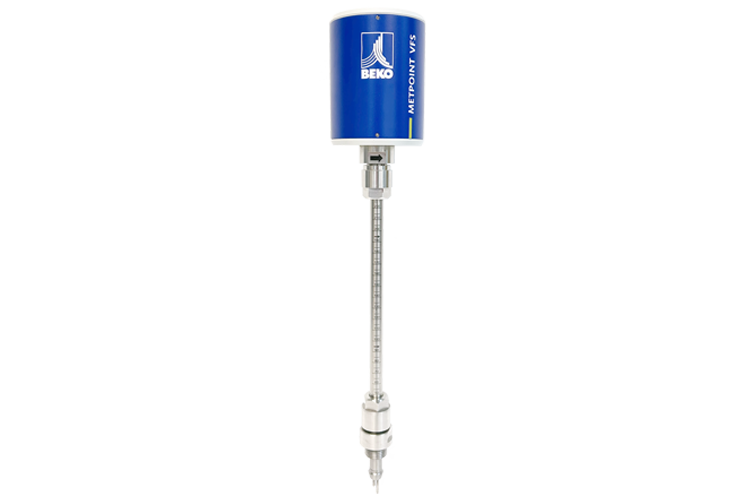

FS Series Flow Sensors

Measuring Principle

Calorimetric measurement

Measured Variables

Flow and consumption

Intended Measurement Medium

Compressed air or gases

Measurement Range

0.12 to 23,275 scfm

Measuring Accuracy

± 1.5% of reading

Max. Operating Pressure

232 psig standard (725 psig optional)

Operating Temperature

Housing: -22 to +176 °F
Sensor probe: -22 to +284 °F

Storage Temperature

-

Connection Size | Type

½" BSP (ISO 228/1)

Analog Output

4...20 mA

Digital Output

Yes

Protection Class

IP65

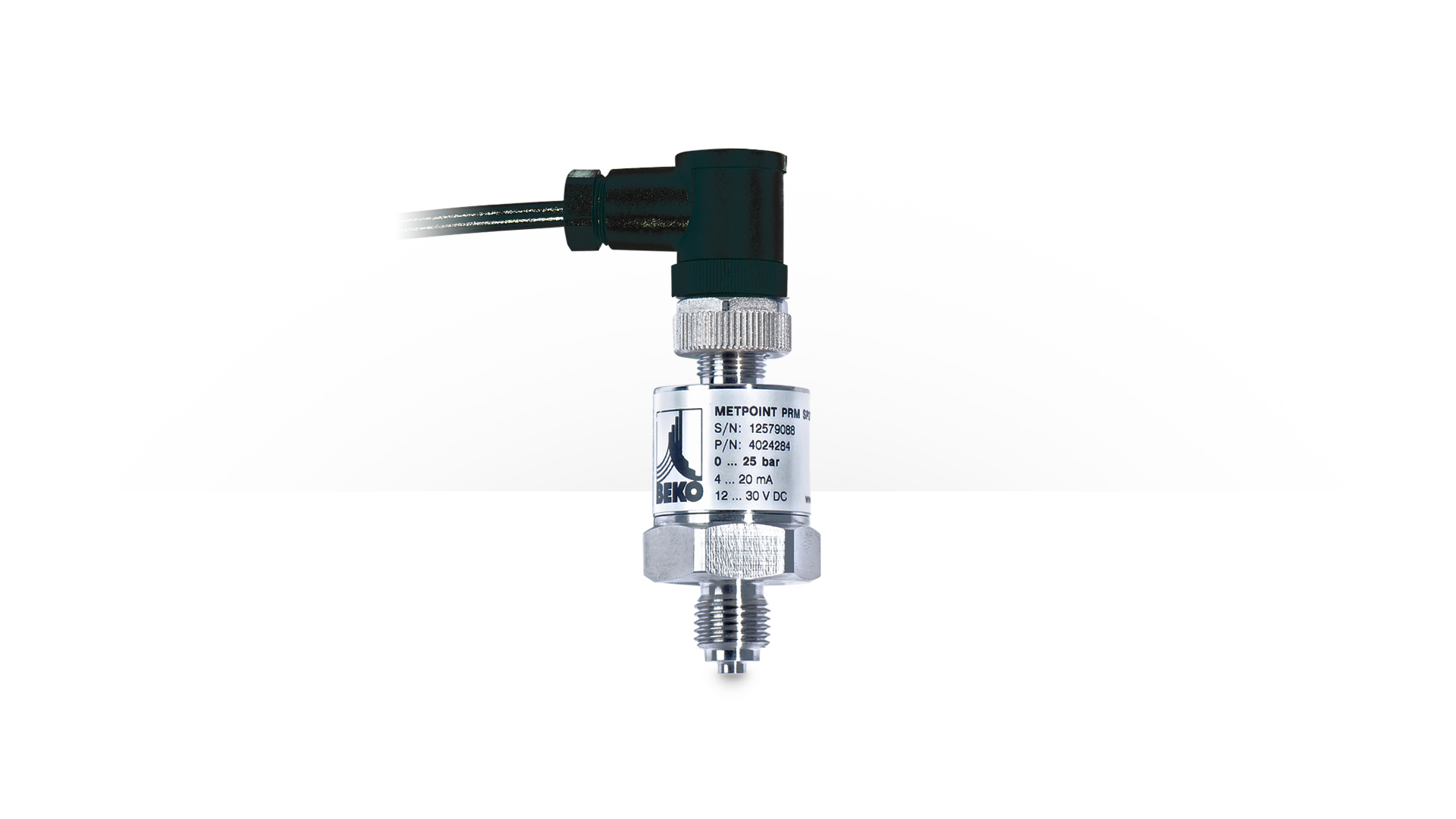

SP Series Pressure Sensors

Measuring Principle

Stainless steel thin-film technology

Measured Variables

Relative pressure

Intended Measurement Medium

Gases or liquids

Measurement Range

0 to 232 psig (0 to 870 psig optional)

Measuring Accuracy

≤ ± 0.5%

Max. Operating Pressure

725 psig

Operating Temperature

-40 to +185 °F

Storage Temperature

-40 to 185 °F

Connection Size | Type

¼" BSP

Analog Output

4...20 mA

Digital Output

No

Protection Class

IP67

OCV Series Oil Vapor Sensors

Measuring Principle

Photoionization detection

Measured Variables

Residual oil content

Intended Measurement Medium

Compressed air

Measurement Range

≤ 0.01 to 2.50 mg/m3

Measuring Accuracy

≤ 0.01 to 0.5 mg/m3 ±0.003 mg/m3
≥ 0.5 to 1.0 mg/m3 ±0.10 mg/m3
≥ 1.0 to 2.5 mg/m3 ±0.10 mg/m3

Max. Operating Pressure

232 psig standard (580 psig optional)

Operating Temperature

41 to 122 °F

Ambient Temperature

41 to 113 °F

Connection Size | Type

1/8” female thread, ISO 228-1 standard

Analog Output

4-20 mA analog output

Digital Output

Yes

Protection Class

IP 54

METPOINT^® Function Videos

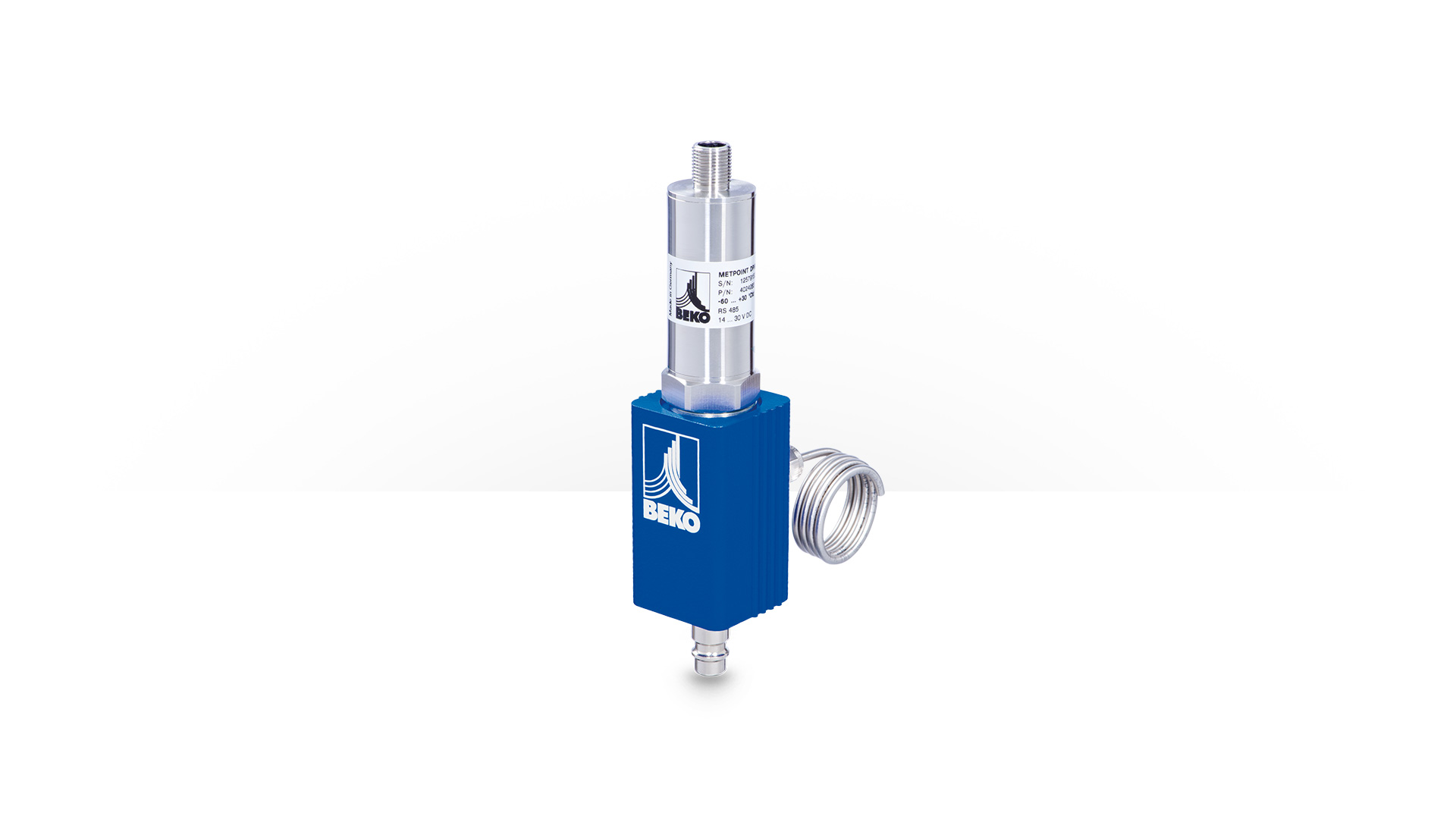

METPOINT^® DPM

With the temperature, the relative humidity and the dew point , mobile and stationary dew point measuring devices made by BEKO TECHNOLOGIES precisely measure the critical parameters in compressed air and other gases.

Find even more videos on our YouTube channel.

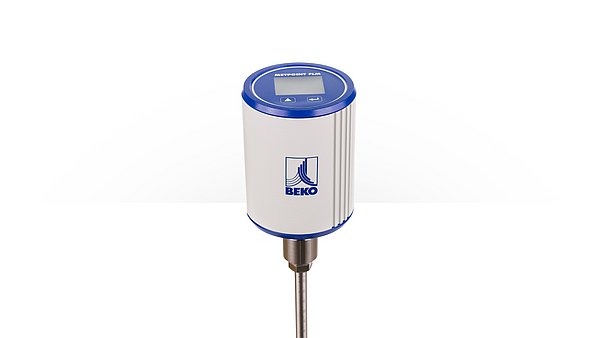

METPOINT^® FLM

Two temperature sensors are installed in series in the direction of flow. The first temperature sensor measures the current process temperature of the compressed air, while the second sensor is electrically heated to a temperature that is 40 K higher than that of the first sensor. Higher volume flows results in a quicker drop in temperature at the sensors, so that the electric heater of the second sensor must increase its heat output. The electric energy required to maintain the temperature difference is proportional to the volume flow. This energy consumption is converted to provide the relevant flow measurements.

Find even more videos on our YouTube channel.

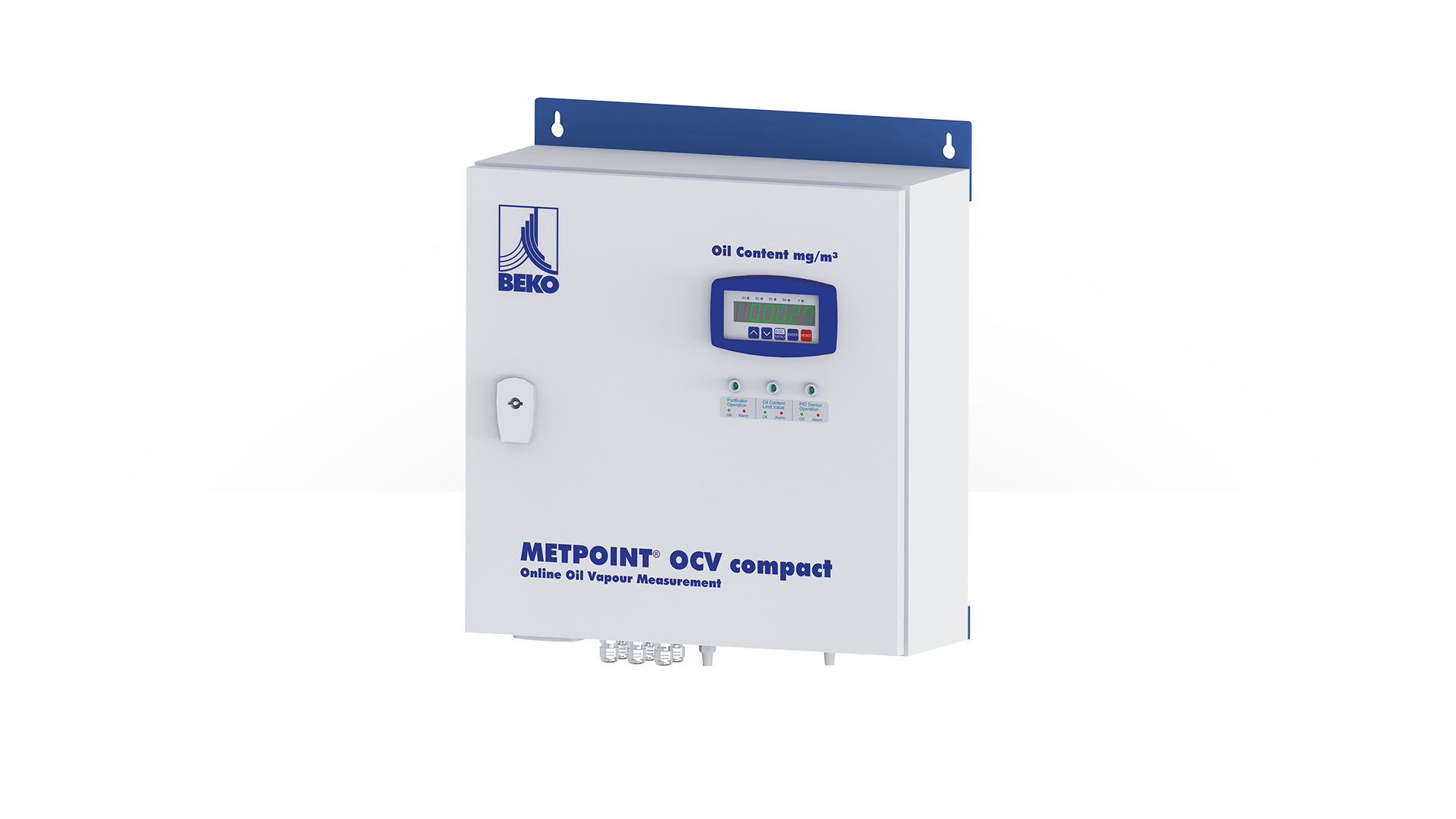

METPOINT^® OCV

METPOINT^® OCV is a revolutionary in-line hydrocarbon content sensor. This measurement technology is capable of detecting hydrocarbons down to a range as low as 0.0006 mg/m³ in a compressed air stream.

Find even more videos on our YouTube channel.
