METPOINT® | Portable Sensor Solutions
DPM Portable Dew Point Monitor
Measuring Principle
| Capacitive polymer sensor |
Measured Variables
| Dew point |
Intended Measurement Medium
| Compressed air or gases |
Measurement Range
| -112 to +122 °F |
Measuring Accuracy
| ± 3.5 °F at -40 °F PDP |
| ± 0.9 °F at +15 to +86 °F |
Max. Operating Pressure
| 232 psig |
Digital Connection
| Integrated USB |
VFS Portable Flow Monitor
Measuring Principle
| Calorimetric measurement |
Measured Variables
| Flow rate |
Intended Measurement Medium
| Compressed air or gases |
Measurement Range
| 0.12 to 16,100 scfm |
Measuring Accuracy
| ± 1.5% of measured value |
Max. Operating Pressure
| 232 psig standard (725 psig optional) |
Digital Connection
| Integrated USB |

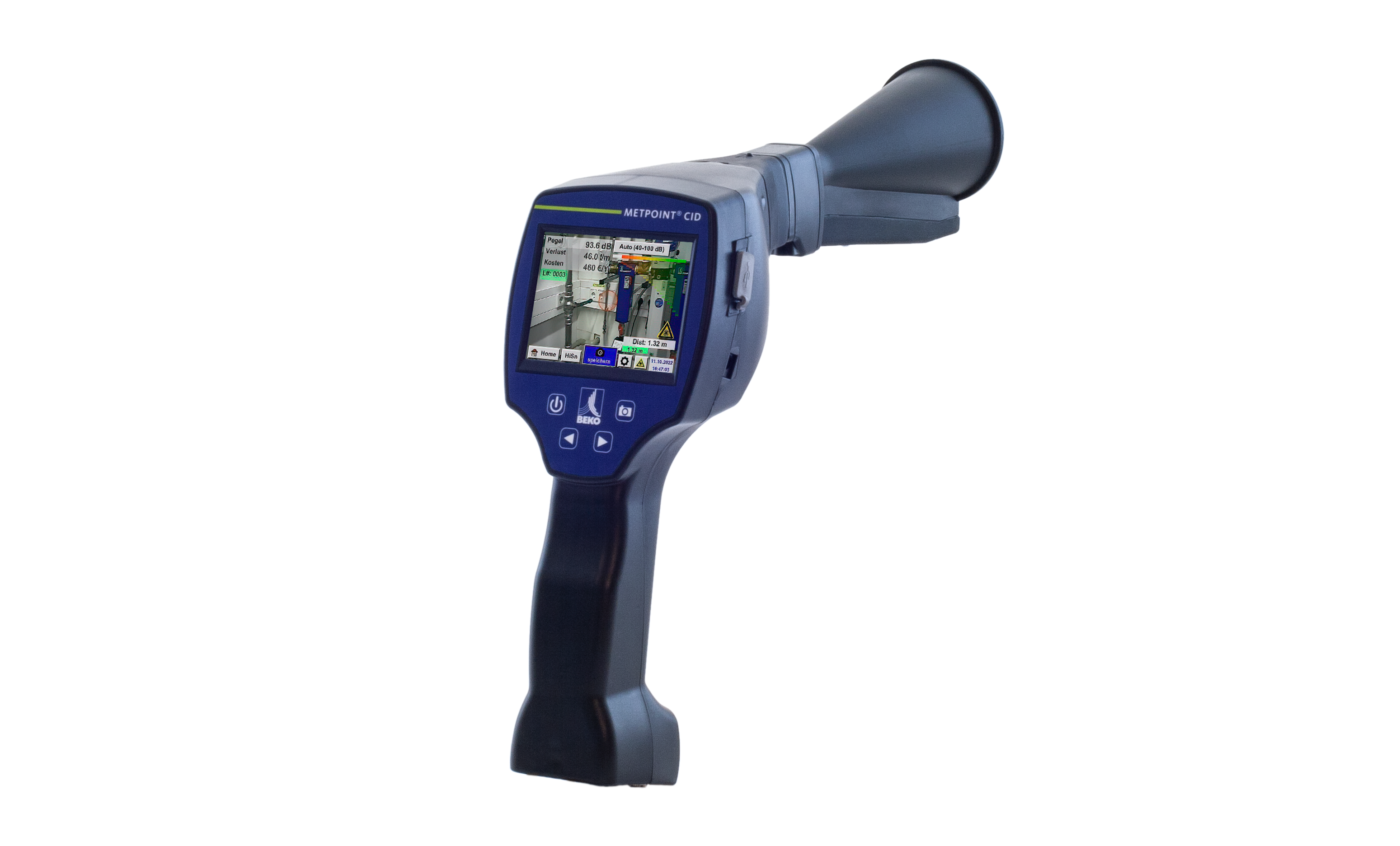

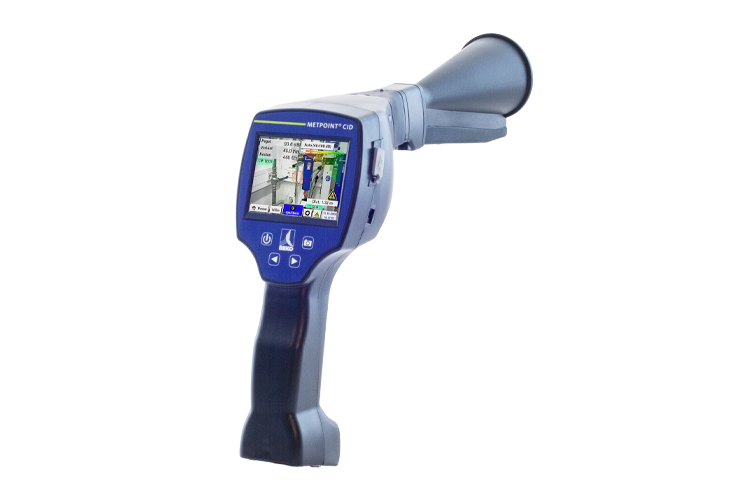

CID Portable Leak Detector
Measuring Principle
| Ultrasonic detection |
Measured Variables
| Leakage |
Intended Measurement Medium
| Compressed air or gases |
Measurement Range
| up to 40 kHz |
Measuring Accuracy
| ± 1 kHz |
Max. Operating Pressure
| - |
Digital Connection
| Mini USB interface |
METPOINT® Function Videos
METPOINT® FLM
Two temperature sensors are installed in series in the direction of flow. The first temperature sensor measures the current process temperature of the compressed air, while the second sensor is electrically heated to a temperature that is 40 K higher than that of the first sensor. Higher volume flows results in a quicker drop in temperature at the sensors, so that the electric heater of the second sensor must increase its heat output. The electric energy required to maintain the temperature difference is proportional to the volume flow. This energy consumption is converted to provide the relevant flow measurements.
Find even more videos on our YouTube channel.
METPOINT® Features and Benefits
High Measurement Accuracy
- Measuring instruments are designed specifically for compressed air applications
Independent Reliability
- Reliable measurement that is independent of temperature and pressure - no adjustment necessary
Wide Range Connectivity
- From data logger to networking to mobile systems
Easy to Use Display
- Simple to use, multi-function displays that are easy to read and are user expandable
Wide Variety of Applications
- Portable and stationary versions offer users maximum flexibility
