DD081
![](/fileadmin/_processed_/e/f/csm_METPOINT_DD081_Website_Preview_9bf5679ee8.jpg)
Housing Dimensions (HxWxD)
4.65” x 3.62” x 3.66” |
Housing Material
ABS plastic |
Housing Protection Standard
IP 65 |
Connections
4 x M12 plastic connections for sensor, power supply and alarm relays |
Sensor Inputs
1 analog sensor input |
Data Logging
None |
Operating Temperature
14 °F to 140 °F |
Storage Temperature
-4 °F to 176 °F |
Power Supply for Sensors
24 VDC, max. 100 mA |
Interface Type
4-key keypad, on-device only, no software |
½” height, red LED, 7 segment, 5 digit display |
Outputs
2 alarm relays, 230 VAC, 3 A |
4-20 mA signal passive output |

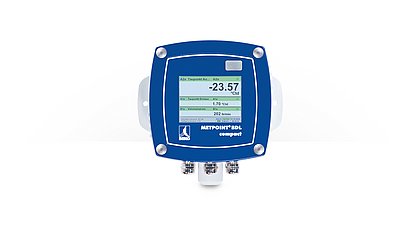

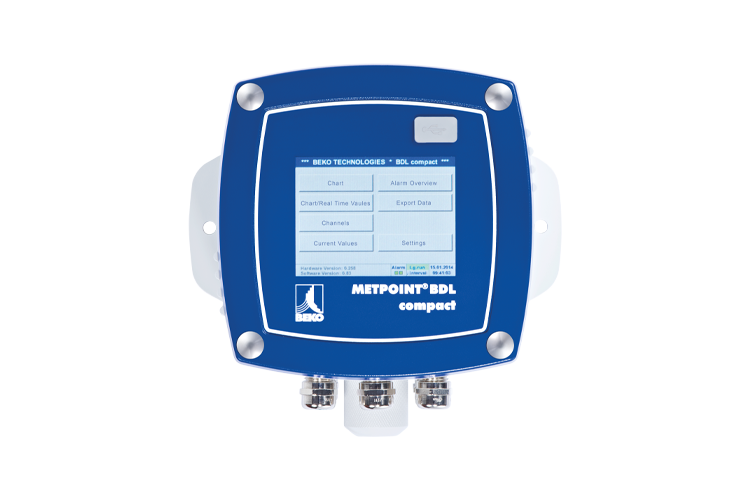

BDL Compact
![METPOINT BDL compact METPOINT BDL compact](/fileadmin/_processed_/f/d/csm_metpoint-bdl-compact_10850aec2c.jpg)
Housing Dimensions (HxWxD)
7.09” x 6.54” x 4.53” |
Housing Material
Powder-coated aluminum, polyester front faceplate |
Housing Protection Standard
IP 44 |
Connections
7 x M12 x 1.5 nickel-plated brass connections for sensor, power supply and alarm relays |
Sensor Inputs
Base model is either 2 analog or 2 digital sensor inputs, both are expandable to one of the following configurations: 2 analog and 2 digital, 4 analog or 4 digital sensor inputs |
Max. number of sensor inputs per unit: 4 |
Data Logging
Up to 1,000,000 values / recording interval: min. 1 sec., max. 59 min. and 59 sec. (up to 4 GB) |
Operating Temperature
33 °F to 122 °F |
Storage Temperature
-4 °F to 158 °F |
Power Supply for Sensors
24 VDC, max. 25 mA per sensor |
Interface Type
Full color, 3.5” TFT touchpanel transmissive, with graphics, charts and statistics |
Outputs
USB stick, TCP via Ethernet / Modbus RTU via RS 485, integrated web server (all optional) |
4-20 mA signal passive output, BDL Connect basic software |
2 alarm relays, 230 VAC, 3 A max. |
