QWIK-PURE®CS and iCS | Oil-water Separators
QWIK-PURE CS Line
Flow Rate
| Three model sizes for 0 - 400 scfm |
Suitable Lubricant Type
| All including Polyglycol lubricants |
Separation Type
| Gravity fed, direct to filter |
Cartridge Based System
| CS 100 and 200: No, CS 400: Yes |
Intelligent Controls
| No |
Available Options
| Expansion kits, High pressure relief chamber, Spill protection basin, Cover3More extended warranty |
QWIK-PURE iCS Line
Flow Rate
| Four model sizes for 401 - 3,300 scfm |
Suitable Lubricant Type
| All including Polyglycol lubricants |
Separation Type
| Intelligent, sensor operated, direct to cartridge |
Cartridge Based System
| Yes |
Intelligent Controls
| Yes - IIoT ready with Wi-Fi, advanced Modbus, integrated alarms, and cartridge life cycle status indicator |
Available Options
| Expansion kits, High pressure relief chamber, Spill protection basin, Cover3More extended warranty |
QWIK-PURE® Function Video
The disposal of air compressor lubricant carryover in condensate is a concern, as is the variety of regulations across the country. Installation of an oil-water separator is simple. The oily condensate from each drain valve is individually piped to a depressurization chamber to reduce pressure to atmospheric. The clean water is then piped into an waste water drain. The separated oil is contained within the cartridge and/or held in a collection vessel for proper disposal.
Find even more videos on our YouTube channel.
QWIK-PURE® Features and Benefits
Intelligent Operation
- Flow-regulated control of the unit at all times using capacitive sensor technology, complete visibility of the operational status, and data recording with an IIoT-ready controller.
Patented Functionality
- The revolutionary principle of using very low pressure compressed air to push condensate through the cartridge in concert with the controls is exclusive technology.
Environmentally Safe
- QWIK-PURE cartridges are hermetically sealed and are safe for sanitary landfills because the oil is securely trapped in the adsorption material, and sealed.
Quick and Easy Service
- Patented quick disconnect cartridges combined with a lightweight filling material make installation and service simple, flexible, and clean.
Modular Expansion
- A future-proof solution for any application that effortlessly expands and can accommodate up to 3,300 scfm in a compact space.
QWIK-PURE® and ÖWAMAT® Downloads
QWIK-PURE CS Brochure
Brochure
6 MB
QWIK-PURE CS 100 - 200
Manual
2 MB
QWIK-PURE CS 400
Manual
9 MB
QWIK-PURE iCS 550 - 3300
Manual
27 MB

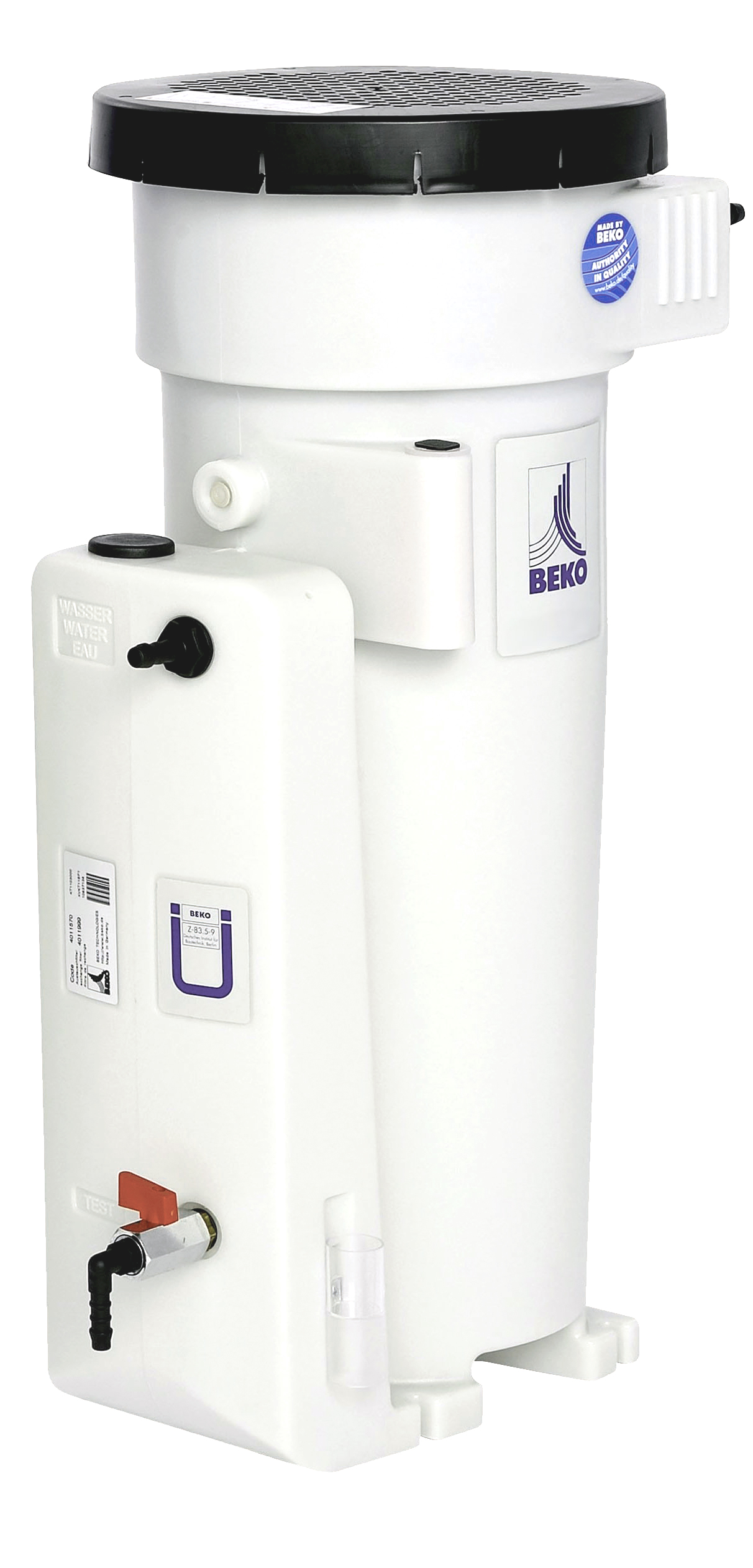

QWIK-PURE 25 and 50
Manual
2 MB

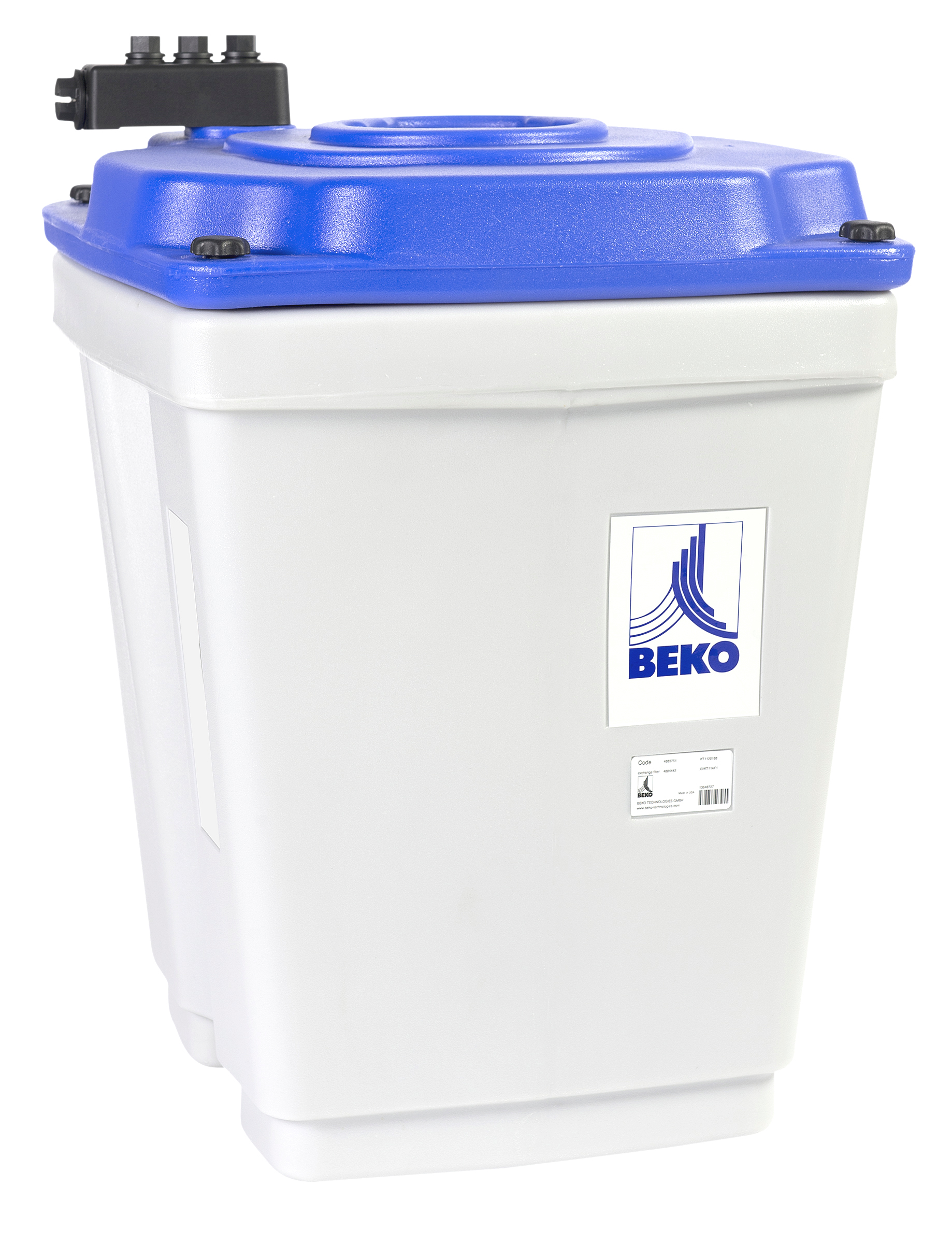

QWIK-PURE 100
Manual
2 MB
QWIK-PURE 200 and 350
Manual
3 MB

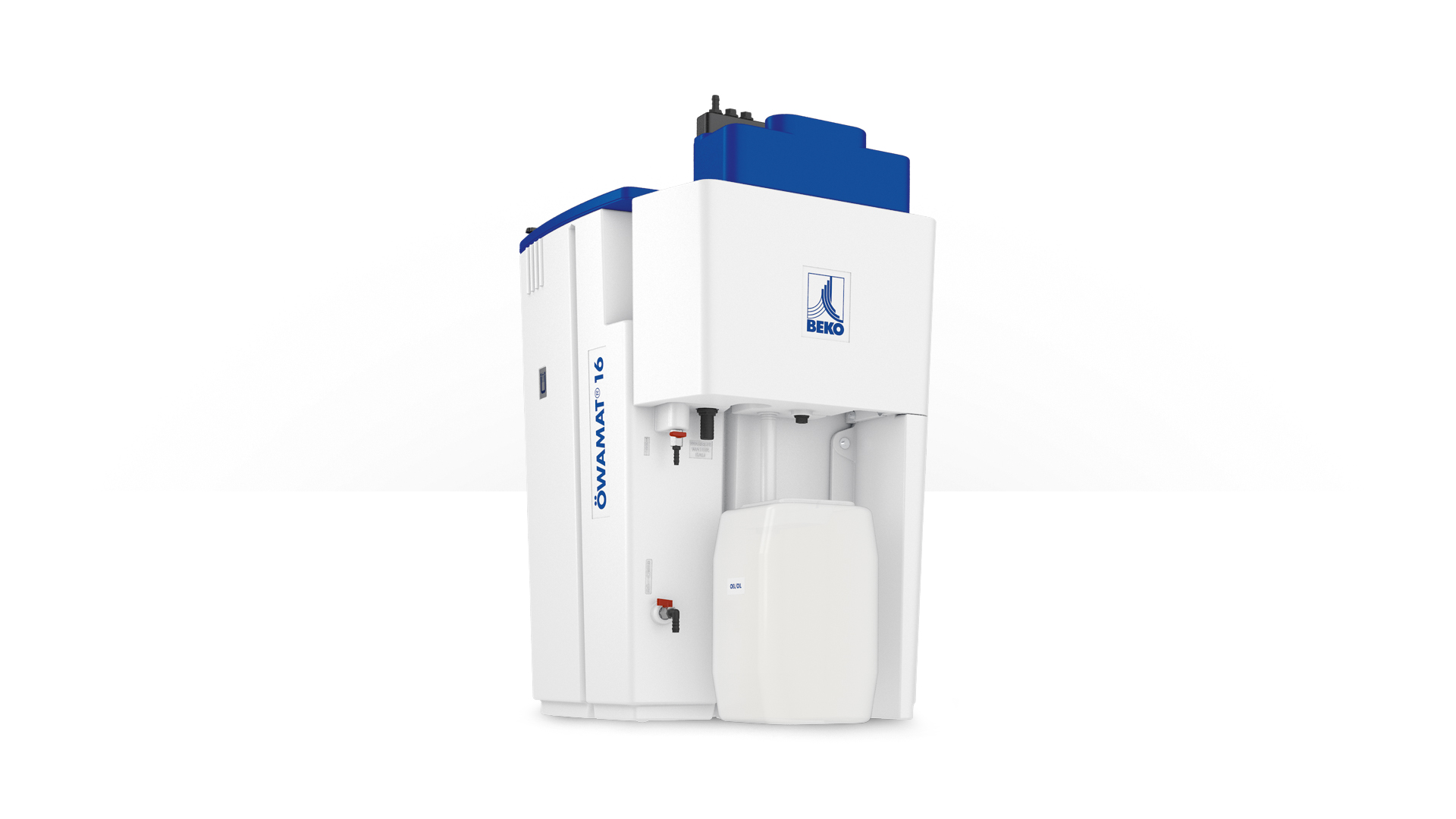

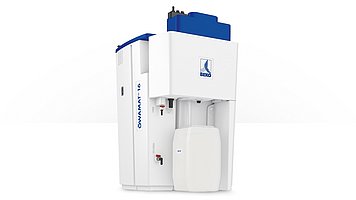

OWAMAT 12-16
