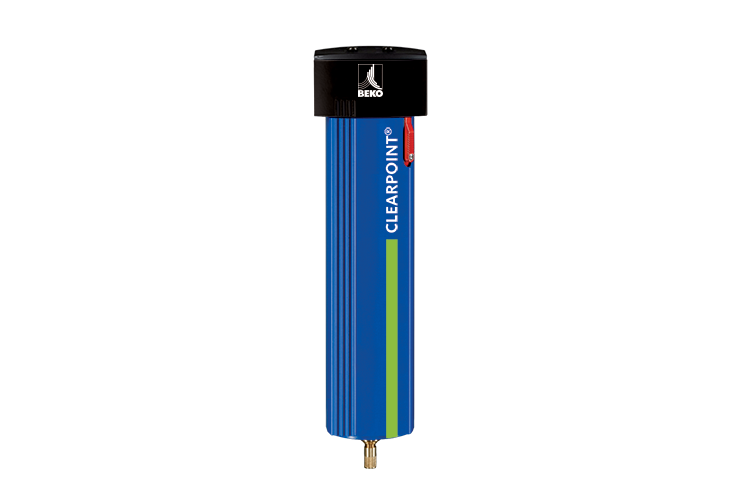

CLEARPOINT® | Coalescing and Particulate Filters

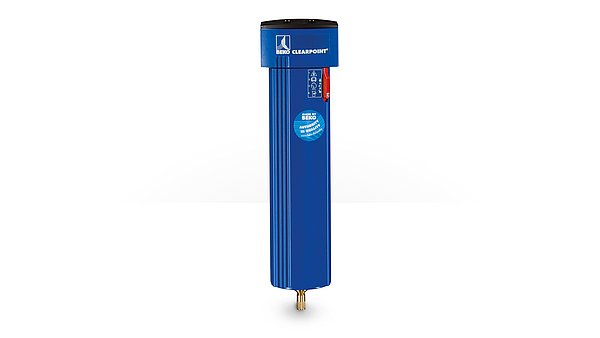

Threaded Series
Flow Rates
| 25 - 1,900 scfm |
Maximum Operating Pressure
| 232 psig |
Standard Pipe Connection Sizes
| 3/8" - 3" NPT |
Housing Material
| Anodized, powder coated aluminum |
Available Options
| BEKOMAT® drain, Differential pressure gauge, Cover3More extended warranty |
Flanged Series
Flow Rates
| 1,900 - 21,000 scfm |
Maximum Operating Pressure
| 232 psig |
Standard Pipe Connection Sizes
| 4” - 12” Flange |
Housing Material
| Powder coated carbon steel |
Available Options
| Cover3More extended warranty |

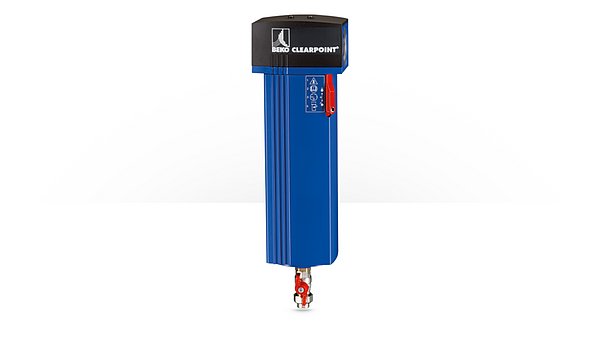

Activated Carbon Series
Flow Rates
| 25 - 1,900 scfm |
Maximum Operating Pressure
| 232 psig |
Standard Pipe Connection Sizes
| 3/8” - 3” NPT |
Housing Material
| Anodized, powder coated aluminum |
Available Options
| Cover3More extended warranty |

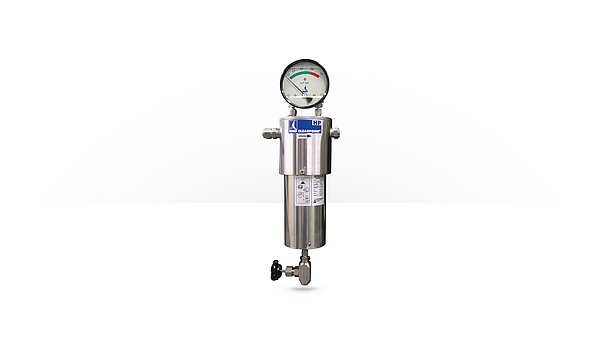

High Pressure Series
Flow Rates
| 100 - 2,750 scfm |
Maximum Operating Pressure
| 725 - 7,250 psig |
Standard Pipe Connection Sizes
| 3/8" - 2" NPT |
Housing Material
| Aluminum or stainless steel |
Available Options
| Drain connection kit, Zero air loss drain, Manual valve, Differential pressure gauge, Cover3More extended warranty |
CLEARPOINT® Function Video
The latest generation of CLEARPOINT®
compressed air filters has enabled us to improve our solutions for compressed air filtration and be able to increase the deposition rate for oil aerosols by up to 10 fold. The differential pressure has simultaneously been reduced by up to 50% and the energy efficiency can therefore be considerably optimized.
Find even more videos on our YouTube channel.
CLEARPOINT® Features and Benefits
Energy Efficient by Design
- Ultra-low differential pressure across the range with advanced eco series pleated elements
Flow Optimized Housing
- Unique curved inlet design was engineered for the lowest possible differential pressure
Maximum Reliability
- Double threaded filter head, extruded, fully anodized, and zero air loss drain option
Performance
- Superior retention rate up to 99.999%
Simplified Maintenance
- Simple, push-fit element designs without tie-rods — we considered the details in the design
