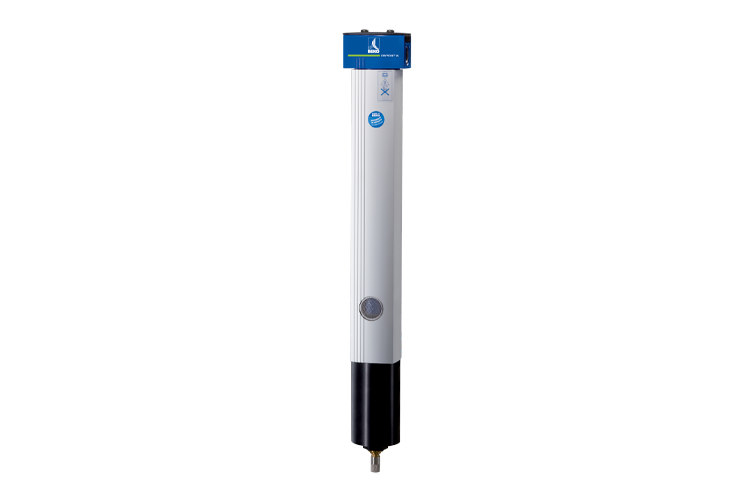

DRYPOINT® MD | Membrane Drying
MDe Series
Flow Rate
| 1 - 120 scfm |
Maximum Inlet Air Temperature
| 140 °F at 100 psig |
| 120 °F at 180 psig |
Fixed or Adjustable Outlet Pressure Dew Point | ISO 8573-1:2010 Air Quality Class
| Fixed | Class 2-6 |
Pre-filter Integrated to Housing
| No |
Standard Pipe Sizes
| ¼ - 1 ½” |
Available Options
| Wall brackets, Cover3More Extended Warranty |
MDp Series
Flow Rate
| 1 - 120 scfm |
Maximum Inlet Air Temperature
| 140 °F at 100 psig |
| 120 °F at 180 psig |
Fixed or Adjustable Outlet Pressure Dew Point | ISO 8573-1:2010 Air Quality Class
| Fixed | Class 2-6 |
Pre-filter Integrated to Housing
| Yes |
Standard Pipe Sizes
| ¼ - 1 ½” |
Available Options
| Wall brackets, Remote purge air switch, Cover3More Extended Warranty |
MDi Series
Flow Rate
| 1 - 120 scfm |
Maximum Inlet Air Temperature
| 122 °F at 145 psig |
Fixed or Adjustable Outlet Pressure Dew Point | ISO 8573-1:2010 Air Quality Class
| User Adjustable | Class 2-6 |
Pre-filter Integrated to Housing
| Yes |
Standard Pipe Sizes
| ³/₈ - 1” |
Available Options
| Cover3More Extended Warranty |
DRYPOINT® MD Function Video
The DRYPOINT® MDp membrane dryer with an integrated nanofilter is the innovative solution for efficient filtration and drying in one housing. It offers reliable compressed-air drying at a constant compressed-air temperature, saves energy through low purge air demand and does not need polluting desiccants. In addition, filtration, which is directly connected ahead, prevents condensation upstream of the membrane.
Find even more videos on our YouTube channel.
Given several measured values by the sensor, the DRYPOINT® MDi control software decides in cycles if and for how long the complete purge air volume has to be provided to achieve and stabilize the required degree of drying. This process is implemented via a targeted timed sequence of a solenoid valve. The period of the two process sections described below therefore varies in each cycle to keep the degree of drying within the specified tolerance range.
Find even more videos on our YouTube channel.
DRYPOINT® MD Features and Benefits
Twist 45 Technology
- Highest possible performance with 45° wound fibers
Maximum Reliability
- Designed to perform even in the toughest environments
Nearly Instant Results
- Achieves dew point in 10-minutes or less
Maintenance Free
- With no moving parts, reliable even in mobile applications
Perfect Design
- Small footprint with several configurations
Preset Pressure Dew Point
- The only dryer in the world with the ability to preset dew point (MDi models only)
DRYPOINT® MD Downloads
DRYPOINT MD Brochure
Brochure
6 MB
DRYPOINT M Standard 08 Series
Manuals
426 KB
DRYPOINT M Tubular 40 Series
Manuals
511 KB
DRYPOINT MDp Premium 2-8
Manuals
982 KB
DRYPOINT MDp Premium 10-130
Manuals
3 MB
DRYPOINT MDi Intelligent 12-130
Manuals
4 MB
DRYPOINT MDe Economy 2-8
Manuals
853 KB
DRYPOINT M PLUS 10-40
Manuals
2 MB
DRYPOINT M Standard 10-20 Series
Manuals
565 KB
DRYPOINT M Parallel System
Manuals
902 KB
DRYPOINT M Standard 40 Series
Manuals
527 KB
