DRYPOINT® XC | Heatless Desiccant Dryers

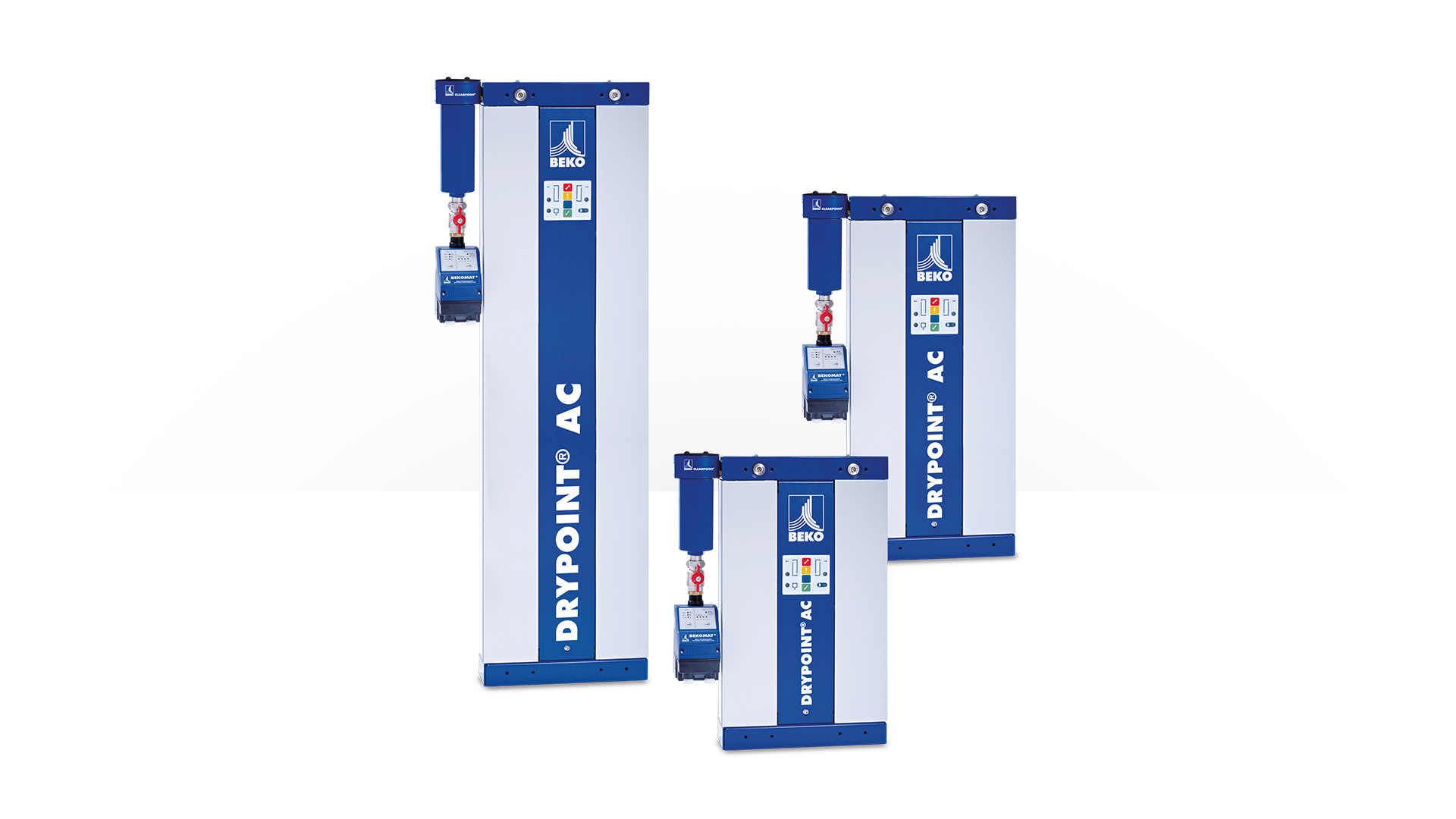

ACC Series - Compact
Flow Rate
| 4 - 110 scfm |
Standard Outlet PDP | Optional
| -40 °F | -100 °F |
Maximum Operating Pressure
| 232 psig (ACC 4-35) |
| 189 psig (ACC 46-110) |
Average Purge Air
| 18% |
Available Options
| Wall mounting bracket (ACC 4-35), Cover3More extended warranty |
XCe Series - Economy
Flow Rate
| 80 - 800 scfm |
Standard Outlet PDP | Optional
| -40 °F | -100 °F |
Maximum Operating Pressure
| 150 psig |
Average Purge Air
| 15% |
Available Options
| Mounted filters, 3-valve bypass, Cover3More extended warranty |

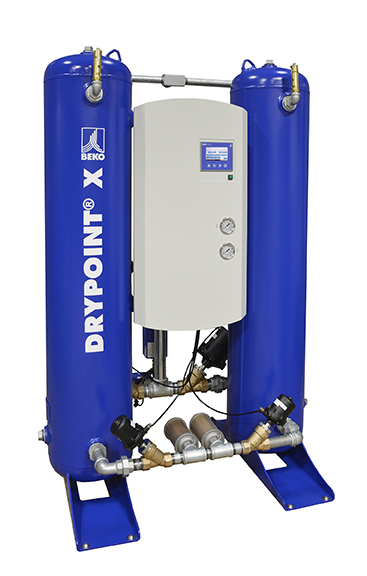

XCp Series - Premium
Flow Rate
| 80 - 2,800 scfm |
Standard Outlet PDP | Optional
| -40 °F | -100 °F |
Maximum Operating Pressure
| 150 psig |
Average Purge Air
| 15% |
Available Options
| Mounted filters, 3-valve bypass, Outdoor package, Pneumatic controls, Dew point monitor with display, Failure to switch alarm, Webpage with data log, Cover3More extended warranty |

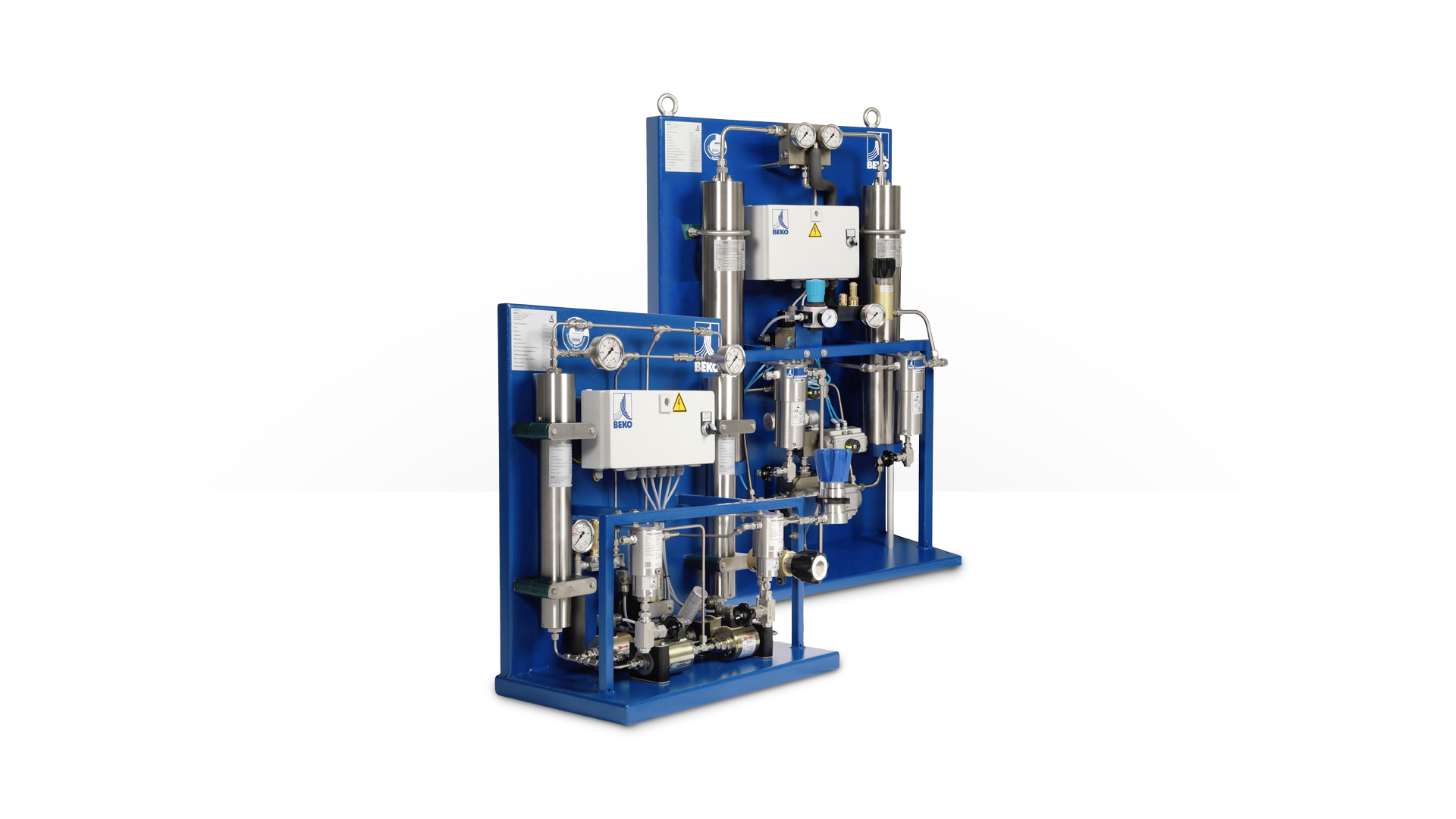

AC HP Series - High Pressure
Flow Rate
| 35 - 480 scfm |
Standard Outlet PDP | Optional
| -40 °F | -100 °F |
Maximum Operating Pressure
| 7,250 psig |
Average Purge Air
| 3 - 7% |
Available Options
| Dew point demand control, Shock and vibration damping, Cover3More extended warranty |

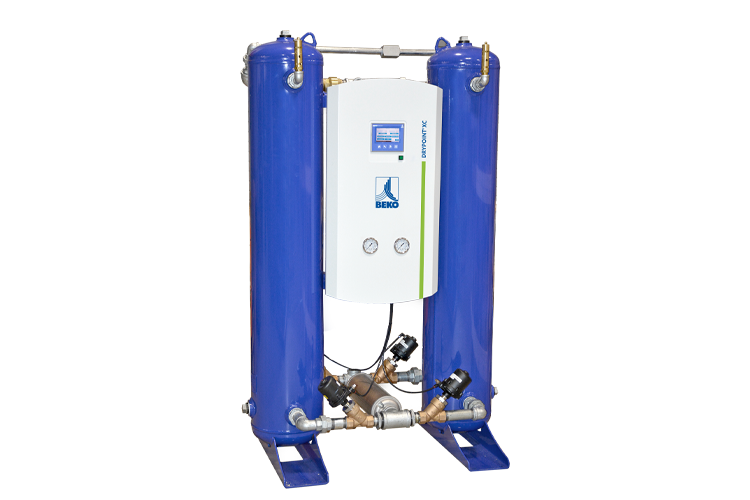

DRYPOINT® XC Function Video
Regenerative desiccant dryers are frequently found in industrial applications around the world. These dryers use a desiccant material, which adsorbs the water vapor in the air stream. Heatless desiccant dryers utilize a small amount of dried air to regenerate the desiccant in one tower while the other tower dries the compressed air. DRYPOINT® XC Series heatless desiccant dryers provide very low dew points, are designed around reducing energy and process waste, and provide a very user friendly interface.
Find even more videos on our YouTube channel.
DRYPOINT® XC Features and Benefits
Innovative & Reliable Design
- High quality components are used in construction and combined with high-level engineering
Compact Construction
- Reduces traditional height by up to 30%
Advanced Controller
- Each dryer includes a feature rich controller with energy saving modes
Ease of Maintenance
- Open frame design where all features are front-mounted, simplifies maintenance and reduces costs
Wide Standard Range
- Up to 2,800 scfm from 60 to 7,250 psig with fully customized engineered solutions available
