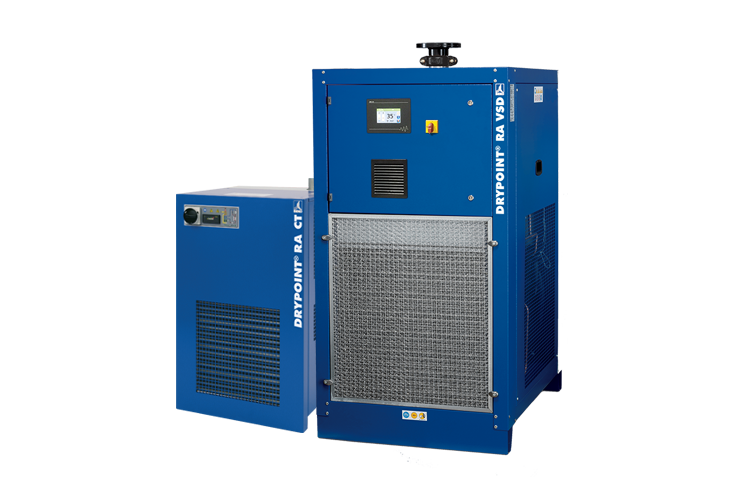

DRYPOINT® RA | Energy Saving Refrigerant Dryers
RA CT Series
![](/fileadmin/_processed_/5/e/csm_DRYPOINT_RA_7303f34522.jpg)
Flow Rate
20 - 500 scfm |
Maximum Inlet Air Temperature
160 °F |
Maximum Inlet Operating Pressure
20 - 50: 232 psig |
75 - 500: 200 psig |
Standard Outlet Pressure Dew Point | ISO 8573-1:2010 Air Quality Class
≤ 37-45 °F | Class 4-5 |
Standard Condensate Drain
BEKOMAT® |
Available Options
Anti-corrosion treatment, 3-valve bypass, Water ingress protection, Cover3More extended warranty |
RA VSD Series
![](/fileadmin/_processed_/8/a/csm_DRYPOINT_RA_VSD_-_2016_PB_no_swoosh_313c150045.jpg)
Flow Rate
800 - 6,000 scfm |
Maximum Inlet Air Temperature
160 °F |
Maximum Inlet Operating Pressure
203 psig |
Standard Outlet Pressure Dew Point | ISO 8573-1:2010 Air Quality Class
≤ 37-45 °F | Class 4-5 |
Standard Condensate Drain | Optional
BEKOMAT® |
Available Options
Anti-corrosion treatment, 3-valve bypass, Cover3More extended warranty |
DRYPOINT® RA Function Video
With the expansion of the portfolio by DRYPOINT® RA Eco, refrigeration drying can optimally be adjusted to individual requirements: in applications in which stable conditions prevail, DRYPOINT® RA is the number one choice; at a varying volume flow, DRYPOINT® RA Eco series dryers achieve optimum results at a reduced employment of resources.
Find even more videos on our YouTube channel.
DRYPOINT® RA Features and Benefits
Unique Heat Exchanger
- Vertical profile allows for minimum pressure drop and self cleans using gravitational force
Eco Series Technology
- Maximized energy savings with unique variable speed or cycling technology
Integrated BEKOMAT®
- Reliable condensate discharge and maximum energy savings
Maximum Dew Point Stability
- Varible compressor and fan operation provide an
ultra stable dew point and no-freeze-up guarantee
Maintenance Friendly
- The entire range features an open frame that provides easy access to all components
